Principle of ultrasonic tomography for concrete structures and non-destructive inspection of concrete cover for reinforcement

Pacific Journal of Mathematics for Industry201810:6

https://doi.org/10.1186/s40736-018-0040-0

  • Received: 22 January 2018
  • Accepted: 21 August 2018
  • Published:

Abstract

The authors are trying to develop an ultrasonic CT technique for concrete structures. As the first step of its development, we study how the ultrasonic waves propagate in concrete structures and pose a problem to develop ultrasonic CT, applying which we give a non-destructive inspection technique for concrete cover by application of the idea of the ultrasonic CT. The authors claim that this study gives the foundation of the theory of ultrasonic CT for concrete structures.

Keywords

  • Ultrasonic tomography
  • Integral geomerty

Introduction

There existing a number of non-destructive inspection techniques for concrete structures which give some rough sketches of the interior structure, few of them provides concrete and complete interior information of concrete structures. A few years ago, the X-ray computerized tomography (CT for short) for concrete structures being practicalized, it costs very expensive and the effect of the X-rays to human bodies and the environment cannot be ignored. Therefore it is not suitable to apply the X-ray CT for the daily maintenance of concrete structures. It is required to develop a safe, cheaply running and concretely interior-describing non-destructive inspection technique for concrete structures, to establish which is our main purpose. In view of the above argument, the authors are trying to develop an ultrasonic CT technique for concrete structures. In this paper, as the first step of its development, we study how the ultrasonic waves propagate in concrete structures and pose a problem to develop ultrasonic CT, applying which we propose a non-destructive inspection technique for concrete cover by application of the ultrasonic CT for concrete structures.

Of course, there existing a number of non-destructive inspection methods for concrete structures applying ultrasonic waves, confer [3], [10] and so on, for example, almost all of them utilize the echo technique. It is very helpful to apply echo technique when we can access the concrete structure from only its one side. Applying this technique, however, we only obtain rough sketches of the inclusion or the cavity which lies very close to the side we can access, which is far from concretely interior-describing non-destructive inspection by which we mean. We can find very few paper like [5] where the study is given in a similar method to ours. Even in the paper [5], its main result is to detect the combination defect in the masonry, which is very rough and strongly depends on a priori information of the structure, which is also far from the non-destructive inspection technique the authors are trying to develop.

This paper consists of the following sections.
  1. §1.

    Introduction


  2. §2.

    Motivation of this research


  3. §3.

    Propagation of the ultrasonic waves in concrete structures


  4. §4.

    An inverse problem of the acoustic tomography


  5. §5.

    Application to non-destructive inspection of concrete cover for reinforcement


  6. §6.

    Conclusion



In this section, as the introduction of this paper, we introduce the outline of our paper. In the next section, we shall introduce our motivation for this research. We first introduce how we understand the concrete in this paper, based on which there arise many problems to solve. Among them, we shall claim that it is one of the most important problems to establish a concretely interior-describing non-destructive inspection method for concrete structures, not only by practical requirements but also from the viewpoint of our understanding of the concrete. In the third section, we study how the ultrasonic waves propagate in the cement paste and the mortar by the experiments, which gives the fundamentals of our theory. In Section 4, we shall pose an inverse problem for establishment of our ultrasonic CT for concrete structures, for which we shall apply the results of our experiments and their examination discussed in Section 3. The problem posed in this section is also interesting in view of pure mathematics, especially, in view of integral geometry. In the fifth section, we shall develop a non-destructive inspection technique for concrete cover in the reinforced concrete structures by an application of the idea of the ultrasonic tomography discussed in the third and fourth sections. In the final section, we shall summarize our conclusions and mention open problems to be solved for further development.

The authors are grateful to Professor Hisashi Yamasaki for his devoted help for our experiments.

Motivation of this research

In this section, we shall introduce our motivation for this research. Before introducing our motivation, the authors claim that

Claim 2.1.

The concrete materials are artificial megaliths.

Let us first discuss why the authors claim Claim 2.1. Take Valley Temple, Egypt (BC 2500?) and Parthenon, Athens (BC447-432), for example, which are made of megaliths. At that period around those areas, there were plenty of megaliths available, therefore they made Valley Temple and Parthenon of megaliths which are very suitable for edifices. On the other hand, let us turn to Colosseum, Rome (AD 70-80). Its bailey or external wall being made of megaliths, its interior structure is infilled with stones, bricks, sand and Roman cement as bonding material (ash, for example), which we take for the origin of the concrete. It may be because of the shortage of the megaliths in Rome about 2000 years ago. Note that the structure of Colosseum still exists more than 2000 years after its foundation. Hence we claim that the primitive concrete materials applied to the interior infill wall of Colosseum have been playing their important role as the substitutes for the megaliths very well for milleniums, which is one of the reasons why the authors claim Claim 2.1.

We shall introduce our motivation for this research in accordance with Claim 2.1. If we take concrete materials for substitutes for the megaliths, there are superior points to the megaliths’ such as
  • (α) Concrete is easily made and shaped in any form because of its fluidity before it gets hard.

  • (β) The cost of concrete is very cheap.

However, there are demerits of the concrete such as
  1. (a)

    Concrete is not tough to tensile strength.


  2. (b)

    Concrete easily gets cracks in and on itself.



Confer [7] for these merits and demerits of concrete. For the general theory of concrete, confer [2, 9]. The demerit (a) yields necessity to reinforce the concrete. The lifespan of reinforced concrete (RC for short) is said to be about a half century, which is much shorter than that of megaliths’. We have to maintain the concrete very well for a long time for the concrete materials to be substitutes for the megaliths. In view of this point, as well as from the viewpoint of the demerit (b), it is necessary to check the concrete structures by some non-destructive way and repair them effectively for their maintenance. Therefore, the following problem is very important.

Problem 2.1.

In order for concrete materials to be artificial megaliths, it is indispensable to reinforce them and to study how to maintain RC material for a long time.

There is another approach than Problem 2.1, for concrete materials to be artificial megaliths, that is, we should study a method to make concrete structures, without reinforcement, so solid that they can be artificial megaliths, the study of which is under investigation by the authors. Anyway, in view of Problem 2.1, there arise the following problems.

Problem 2.2.

From the viewpoint of Problem 2.1, we pose the following two problems.
  1. (1)

    How to establish an effective, safe and cheaply-running non-destructive inspection technique for RC structures, which detects the interior structure concretely.


  2. (2)

    How to repair the RC structures in order that they would safely live for a very long time



By Problem 2.2, we mean that it is very important to establish a good method to check RC structures without destructing them and to develop a nice method to maintain the RC structures in order that their lifespan would be very long, for RC materials to play a role as substitutes of megaliths. The problem (1) in Problem 2.2 has a strong connection with our discussion in the fifth section.

Propagation of the ultrasonic waves in concrete structures

In this section, as a preparation for our main purpose, we study how the ultrasonic primary waves propagate in the concrete structures. We first introduce our experiments to study how the ultrasonic waves propagate in the cement paste and the mortar. By examining the results of our experiments, we shall study the propagation of the ultrasonic waves in concrete structures of the length about 1m or less.

Let us introduce the outline of our experiments.

Outline of our experiments
  • Ultrasonic waves;
    • The frequency of the ultrasonic waves is 54kHz.

    • Velocity of the ultrasonic wave is denoted by V(m/s).

  • Length of the test pieces; We prepared test pieces of the length 100,200,300,400,800 and 1200mm in order to check
    • the decay of the acoustic velocity

    • the propagation of the ultrasonic waves

  • Inclusions; We prepared two types of test pieces of the size 100mm×100mm×400mm.
    • Normal test pieces

    • Test pieces with styrofoam 100mm×50mm×(200or300mm) included in their inside (cf. Fig. 4 below)

    These test pieces are made use of to study the propagation of the ultrasonic waves.

  • Number of the test pieces; We made three test pieces of each type mentioned above and have taken the average of the observed values of three test pieces in each experiment.

We made the test pieces of cement paste and mortar as shown in Tables 1 and Fig. 1.
Fig. 1
Fig. 1

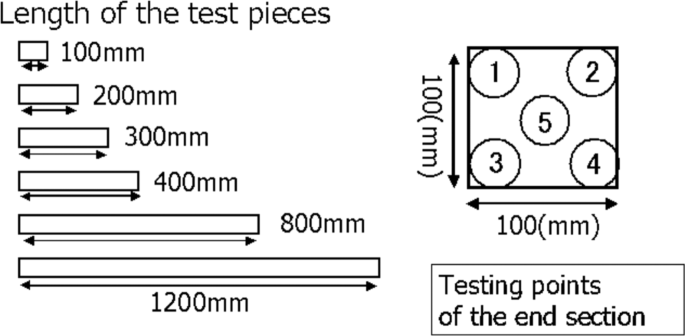

Length of the test pieces and inspection points

Table 1

Mix proportion of the test pieces

Mix proportion of Cement Paste



Water

Cement

Air

Total



Weight(kg)

553

1382

1935



Volume()

553

437

10

1000



W/C=40%, Air=1%

Mix proportion of Cement Mortar



Water

Cement

Sand

Air

Total

Weight(kg)

331

828

1035

2195

Volume()

331

262

397

10

1000

W/C=40%, S/C=1.25, Air=1%

Experiment 1.

We first experimented on the normal test pieces, in order to test whether there is decay of the acoustic velocity in accordance with the length of the test pieces. We projected the ultrasonic waves from the inspection points numbered ,,#x24ZZ; 5circle on one end square of the test pieces (see Fig. 1). We name them the source points. We received them at the same-numbered inspection points on the other end square. We name them as the observation points. We have measured the time for the ultrasonic wave to travel between the source and the observation points. The results of these experiments are summed up in Figs. 2 and 3.
Fig. 2
Fig. 2

Normal test pieces (age of a week)

Fig. 3
Fig. 3

Normal test pieces (age of 4 weeks)

Remark that the average of the data on the points and are treated as the data of the upper points, the average of the data on the points and are treated as the data of the lower points and the point is denoted by the center point.

By review-examining the results of Experiment 1, we obtain the following properties.

Property 3.1.

  • By observing the acoustic velocity in the test pieces, we have rediscovered the well known basic property of concrete; the more time goes by, the harder the test pieces are, which is caused by the reaction of hydration of concrete.

  • We have also rediscovered another well known basic property, the gravity settling of cement and fine aggregate (sand), in terms of the acoustic velocity; the lower the inspection points are, the faster the acoustic velocity is, which is because of the fact that the lower the points are, the larger their density is, caused by the gravity settling of cement and fine aggregate.

  • We can conclude that for the test pieces of the length less than 1200mm, there is no decay of the acoustic velocity from the viewpoint of its first arriving time.

The last property is essentially important for our study.

Experiment 2.

For this experiment, we utilized the test pieces of the length 400mm(100mm×100mm×400mm) with and without the styrofoam of the length 200 or 300mm included in their inside (confer Fig. 4). We conducted the same experiments as Experiment 1, in order to study how the ultrasonic waves propagate in the concrete structures, whose results are review-examined in the following.
Fig. 4
Fig. 4

Test pieces with styrofoam

In Experiment 2, the (formal) velocity V, which is calculated by
$$ V= \frac {\text{length of the test piece} (meters) } { \text{arriving time} (seconds)}, $$
(1)
in the lower points is smaller than that of the upper points (confer Table 2 below), applying which we studied the propagation of the ultrasonic waves in the test pieces. We hypothesized that the propagation of the ultrasonic waves in the test pieces is as the following hypothesis which is also shown in Fig. 5.
Fig. 5
Fig. 5

Propagation of the ultrasonic waves

Table 2

Tables of modification of the velocity (age of 4 weeks)

Cement Paste



V

No-Styrofoam

Styrofoam 200mm

Styrofoam 300mm

V’

No-Styrofoam

Styrofoam 200mm

Styrofoam 300mm

Upper

3777

3800

3868

Upper



Center

3788

3824

3874

Center



Lower

3809

3700

3731

Lower



3756

3843

Cement Mortar



Upper

4223

4208

4223

Upper



Center

4204

4160

4192

Center



Lower

4229

4080

4034

Lower



4141

4155

Hypothesis 3.1.

Let \(\Omega \subset \mathbb {R}^{3}\) be a domain where the test pieces of the cement paste or the mortar locates, and f(x) be the propagation speed of the ultrasonic wave at the point xΩ. For α,βΩ, we denote by γα,β a route from α to β contained in Ω. The primary wave of the ultrasonic one which travels from the point αΩ to the point βΩ takes the route where the travel time is given by
$$ \min_{\gamma_{\alpha, \beta}} \int_{\gamma_{\alpha, \beta}} 1/f(x) d\gamma, $$
(2)

This route is called ‘the fastest route’.

A similar claim to Hypothesis 3.1 being made by H. Yamamoto et al. [12], it is not exactly the same as Hypothesis 3.1. In [12], they tried to establish an ultrasonic CT, however, there has not been a satisfactorily practical ultrasonic CT technique for concrete structures yet. The authors claim that the verification of Hypothesis 3.1 is very important to establish a satisfactorily practical ultrasonic CT technique. In the next section we pose an inverse problem (Problem 4.1 below) by virtue of Hypothesis 3.1, which is an essential problem to establish a satisfactorily practical ultrasonic CT technique.

In view of Hypothesis 3.1, we have modified the length of the orbit along which the ultrasonic wave propagates, that is, the modified velocity V is given by
$$ V^{\prime}= \frac { 0.406 (meters)} { \text{arriving time} (seconds)} $$
(3)
for the lower points in the test pieces with styrofoam of the length 200mm and by
$$ V^{\prime}= \frac { 0.412 (meters)} { \text{arriving time} (seconds)} $$
(4)
for the lower points in the test pieces with styrofoam of the length 300mm. Confer Fig. 5 for the image of these modifications. The results of Experiment 2 with the modification of the velocities are summarized in Table 2, Figs. 6 and 7. Remark that in Table 2, the fields of the modified velocity are left blank where the modification is not necessary.
Fig. 6
Fig. 6

Test pieces of cement paste with styrofoam (age of 4 weeks)

Fig. 7
Fig. 7

Test pieces of mortar with styrofoam (age of 4 weeks)

Let us review-examine the results of Experiment 2, that is, we shall study the modified acoustic velocities shown in Table 2, Figs. 6 and 7. The modified velocities at the lower points being not exactly the same as the test pieces without styrofoam, it is because, in the test pieces with styrofoam, gravity settling of cement and fine aggregate (sand) would not happen by the existence of the styrofoam. As another reason of this phenomenon, it is known that the air concentrate near the formwork in manufacturing process of concrete structures [2, 9]. In this experiment, the boundary surface between the cement paste (or the mortar) and the styrofoam plays the role of the formwork and the air concentrates there. Therefore, the primary ultrasonic wave takes a little longer way around than the route shown in Fig. 5, which results in that the modified velocities of the middle and the lower points are a little slower than the upper points. The exact evaluation how longer the fastest route is, is a very difficult problem.

In view of this review-examination, we conclude that Hypothesis 3.1 is right. Let us summarize the conclusions of Experiments 1 and 2.

Conclusion 3.1.

(Conclusion of Experiments 1 and 2)
  • The primary wave of the ultrasonic one takes the fastest route in the cement paste, the mortar and the concrete.

  • In the concrete structures of the length less than 1200mm, there is no decay of the speed of the ultrasonic waves with respect to the length.

Remarks 3.1.

It is our newer idea than the existing ones [6, 8] to focus on the first arrival time of the ultrasonic primary waves and to pose a problem for the development of the acoustic CT, which may yield a concretely interior-describing non-destructive inspection method. We shall discuss this problem in the next section. We also note that the ultrasonic CT is a part of the acoustic CT. In this paper, we are trying to establish a CT technique applicable to wider problems with other acoustic techniques than the ultrasonic one. As an example of such another acoustic CT technique, the authors are studying to develop a CT technique with electromagnetic acoustic pulses (confer Remark 3.2 below). We also note that the propagation of the ultrasonic primary wave mentioned in the first conclusion in Conclusion 3.1 is the same as ultrasound CT for medical application (cf. [1] for example).

Remarks 3.2.

Having introduced the results of our experiments on the data by application of ultrasonic primary waves, we have almost the same results on electromagnetic acoustic pulse primary waves, which enables us to treat electromagnetic acoustic pulses in the same way as ultrasonic waves for our study. We shall study how to treat electromagnetic acoustic pulses in our forthcoming paper.

An inverse problem of the acoustic tomography

In this section, we pose an inverse problem for the establishment of an ultrasonic tomographic technique for concrete structures. The research to develop an ultrasonic tomography was begun by J. F. Greenleaf at al. [4] and many researches have been published since then. Confer [12] for the references on such researches. For the time being, however, there has not been developed a satisfactorily practical ultrasonic CT technique yet. The authors claim, as in the previous section, that the verification of Hypothesis 3.1 is the first step to establish a satisfactorily practical ultrasonic CT technique, since it yields a key problem, Problem 4.1 below, for establishment of a satisfactorily practical ultrasonic CT technique.

As was studied in the previous section, we know that the the primary wave of the ultrasonic one takes the fastest route in the concrete structures of the length less than 1.2m and there is no decay in the velocity according to the length of the test pieces, which is what Conclusion 3.1 claims. In view these properties, we pose the following problem, which is the main problem in this paper.

Problem 4.1.

(Problem to develop an acoustic CT for concrete structure) Let \(\Omega \subset \mathbb {R}^{3}\) be a domain and f(x) be the propagation speed of the ultrasonic wave at the point xΩ. For α,βΩ, we denote by γα,β a route from α to β contained in Ω. In this case, reconstruct f(x)(xΩ) out of the data
$$ \min_{\gamma_{\alpha, \beta}} \int_{\gamma_{\alpha, \beta}} 1/f(x) d\gamma, $$
(5)

for α,βΩ.

Let us explain what is meant by Problem 4.1. We first note that we take Ω for some concrete structure. By Ω, we denote the boundary of Ω, that is, Ω is the surface of the concrete structure Ω. For a fixed route γα,β, from α to β through Ω with α,βΩ, the integral \(\int _{\gamma _{\alpha, \beta }} 1/f(x) d\gamma \) represents the travel time of the ultrasonic wave when it propagates along γα,β. It is because that the travel time of the sound (of the ultrasonic wave) is proportional to the reciprocal of the propagation speed of the sound. By Conclusion 3.1, what we can obtain by observation is the travel time of the ultrasonic wave which propagates along the route where the travel time would be the shortest in Ω, which is what is meant in (5). If we can reconstruct f(x),(xΩ) out of the data (5), then we can concretely reconstruct the interior of the concrete structures in a non-destructive way. Let us summarize this argument as follows.

Claim 4.1.

By Problem 4.1 we mean the problem “Reconstruct the acoustic velocity” f(x) at the all points xΩ out of the data of the acoustic arrival time between the all pairs of the points on the boundary. Solution to this problem enables us to reconstruct the interior structure concretely, that is, at each point of the interior of the concrete structure, we detect what is at the point, the cement paste, the fine aggregate, the coarse aggregate or the air, completely except the non-essential points mentioned in Remark 4.1 below. As mentioned above, it is very important and useful to develop such safe and cheaply-running non-destructive inspection method for concrete structures which enables us to detect their interior structures concretely, the authors claim that study of Problem 4.1 would bring a breakthrough for non-destructive inspection of concrete structures.

Study of Problem 4.1 is very important not only for solution of Problem 2.1 and problems to be introduced in the next section, but to establish an ultrasonic CT for general concrete structures including RC ones.

Let us give some remarks on Problem 4.1.

Remarks 4.1.

(Remarks on Problem 4.1)
  • In Problem 4.1, we give \(\min _{\gamma _{\alpha, \beta }} \int _{\gamma _{\alpha, \beta }} 1/f(x) d\gamma \) as the observed travel time of the primary wave between the two points α,βΩ, based on Conclusion 3.1. It being obvious that \(\inf _{\gamma _{\alpha, \beta }} \int _{\gamma _{\alpha, \beta }} 1/f(x) d\gamma \) exists, this infimum is attained as real observation of the travel time of the primary wave. Therefore the minimum, \(\min _{\gamma _{\alpha, \beta }} \int _{\gamma _{\alpha, \beta }} 1/f(x) d\gamma \), exists.

  • It is impossible to reconstruct the information of some points x’s where f(x)’s are very small. For example, we cannot reconstruct the acoustic velocity of the styrofoam if it is included near the center of the test piece since no acoustic wave would go through it because of Conclusion 3.1. However, it does not matter very much. Since it is very important to determine the part where the acoustic velocity is so small that the ultrasonic wave would not go through it, where the exact velocity in such area would not matter. Remark that, in practice, it being very important to determine that the place where the acoustic velocity is relatively small, for example, to determine the place where the steel is corroded or there exists a cavity in the RC structures, it is not so important to determine the exact acoustic velocity itself in the place where it is relatively small.

  • It is an interesting problem to determine the optimal subset reconstructible by the acoustic CT established by the study of Problem 4.1.

Study of Problem 4.1 is also important in view of both pure and applied mathematics, especially from the viewpoint of integral geometry. Let us mention how important Problem 4.1 is in view of the research in pure and applied mathematics.

Remarks 4.2.

(Importance of Problem 4.1 in mathematics)
  • It is a very interesting problem to establish an reconstruction formula for Problem 4.1 in view of pure mathematics, especially, in integral geometry.

  • It is another interesting problem in Problem 4.1 to determine the subset of Ω where the reconstruction is impossible because it has no intersection with any γ giving (5). This problem is also interesting in view of integral geometry.

  • In practice, we have to study various incomplete data problems of Problem 4.1 by the restriction arisen from various reasons in practical application, which is interesting in view of pure mathematics, especially in view of integral geometry with incomplete data, which is also very important in applied mathematics.

Let us study a simple problem related to Problem 4.1. For simplicity, let us assume that there is a cavity of a disc whose center and radius are unknown in the two dimensional homogeneous object. The motivation to study this problem is as follows. Almost all standards of concrete materials are determined by the mortar part structure since it is the most important how to make the mortar part in the construction of the concrete materials. The authors claim that we can take the mortar as a homogeneous object since the particles of the cement and the fine gravel are so small that together with the water and the air they make a homogeneous material from macro viewpoint. It can be very basic and important problem to study a cavity of a disc in the mortar, which yields the following problem.

Theorem 4.1.

Let us study the 2-dimensional case. Assume that a homogeneous rectangle contains a cavity of a disk in its interior. In this case, the cavity is reconstructed by appropriate three data of the ultrasonic tomography.

In this theorem, by the term appropriate three data we mean the data which would determine the disc. For simplicity, we assume the acoustic velocity in the homogeneous rectangle is 1 and the cavity is of radius r and centered at (x0,y0). In Fig. 8 below, the length of the detour of the acoustic wave is given by
$$ \begin{aligned} &L_{i} = \left(\left(X_{i}^{1}-x_{i}^{1}\right)^{2} + \left(Y_{i}^{1}-y_{i}^{1}\right)^{2} + \right)^{\frac 12} \\&\qquad+ \left(\left(X_{i}^{2}-x_{i}^{2}\right)^{2} + \left(Y_{i}^{2}-y_{i}^{2}\right)^{2} \right)^{\frac 12} + r \theta_{i}, \end{aligned} $$
(6)
Fig. 8
Fig. 8

Propagation of ultrasonic waves

where i=1,2,3, j=1,2, \(\left (x_{i}^{1}, y_{i}^{1}\right)\) are the points where we project the acoustic wave and \((x_{i}^{2}, y_{i}^{2})\) are the points where receive the acoustic wave (\(x_{i}^{1}=-R\), \(x_{i}^{2}=R\)).

We can solve the system (6) of three equations to determine x0, y0 and r, since we can determine \(X_{i}^{j}, Y_{i}^{j}\) by
$$ {{} \begin{aligned} \left\{ \begin{array}{l} \left(X_{i}^{j}\,-\,x_{0}\right)^{2} \,+\, \left(Y_{i}^{j}\,-\,y_{0}\right)^{2}\,=\, \left(X_{i}^{j}-x_{i}^{j}\right)^{2} + \left(Y_{i}^{j}-y_{i}^{j}\right)^{2}+ r^{2} \\ \left(X_{i}^{j} -x_{0}\right)\left(X_{i}^{j}-x_{i}^{j}\right) + \left(Y_{i}^{j}-y_{0}\right)\left(Y_{i}^{j}-y_{i}^{j}\right)=0. \end{array}\right. \end{aligned}} $$
(7)
and θi by
$$ {\begin{aligned} \theta_{i} = \cos^{-1} \frac {\left(X_{i}^{1}-x_{0}\right)\left(X_{i}^{2}-x_{0}\right)+ \left(Y_{i}^{1}-y_{0}\right)\left(Y_{i}^{2}-y_{0}\right)} {\sqrt{\left(X_{i}^{1}-x_{0}\right)^{2}+ \left(Y_{i}^{1}-y_{0}\right)^{2}} \sqrt{\left(X_{i}^{2}-x_{0}\right)^{2}+ \left(Y_{i}^{2}-y_{0}\right)^{2}}}. \end{aligned}} $$
(8)

Note that there being quadratic equations in the systems (6) and (7), they have two solutions, however, by virtue of the condition that the detour is the shortest way we can determine the unique solution. We also note that thetai in (8) must be acute.

It is very easy to extent Theorem 4.1 to the 3-dimensional case.

Theorem 4.2.

In the three dimensional case, a cavity of a ball in its interior of a homogeneous object is reconstructed by appropriate four data of the ultrasonic tomography.

In this case, what we have to do is determine the four unknowns, the coordinate (x0,y0,z0) of the center and the radius r. It is sufficient to have appropriate four data. The reconstruction algorithm is easily obtained by extending the algorithm for the 2-dimensional case.

For practical application, we shall extend Theorem 4.2 for the case where the cavity consists of several balls and develop a method to approximate a general cavity by a sum of several balls in the future.

Application to non-destructive inspection of concrete cover for reinforcement

In this section, we shall introduce some examples where the study of Problem 4.1 is very important. The main application in this section, we propose a non-destructive inspection method for concrete cover in the RC structures. In the interior of RC structures, there are a number of steel rods inbedded for reinforcement. It is very important to prevent the steel from getting corroded, for which it is very helpful if we can develop a good, cheaply running non-destructive testing method for concrete cover for reinforcing steel. For simplicity, let us assume a simple structure where only one steel rod is inbedded as designed in Fig. 9, which is a section of the three dimensional structure. Based on the above assumption, we shall establish the basic theory for our non-destructive inspection technique for concrete cover. By modification, our method can be applied for real RC structures.
Fig. 9
Fig. 9

A cavity of a circle in the 2-dimensional molar structure

Concrete structure being inhomogeneous, we homogenize the acoustic velocity in the concrete by application of the idea of the least square solution (confer the discussion below), by which we denote the velocity in the steel by V and that in the concrete by v. In general, it is known that 4000m/s<v<5200m/s and 5500m/s<V<6500m/s. Therefore we can assume that v<V.

We first determine the acoustic velocity in the steel V by application of Conclusion 3.1. By homogenization of the acoustic velocity in the concrete mentioned above, the primary ultrasonic wave projected from the point O(0,h) propagates along the spline \(\overline {OQ} \cup \overline {QP}\) and is received at the point P(l,0), whose travel time we denote by t0. If we project the ultrasonic wave from the point O and receive it at the point Pi(l+li,0) with travel time ti, then we obtain approximate acoustic velocity in the steel by li/(tit0). Take observation points P1,,Pn as many as possible and take the least square solution
$$ V = \frac {l_{1}(t_{1}-t_{0}) + \cdots + l_{n}(t_{n}-t_{0})} {\left(t_{1}-t_{0}\right)^{2} + \cdots + \left(t_{n}-t_{0}\right)^{2}} $$
(9)
to the system of linear equation which trivially has no solution
$$ V (t_{1}-t_{0}) =l_{1}, \cdots, V (t_{n}-t_{0}) =l_{n}. $$
(10)
We also comment that the least square solution V is the minimizer for the function
$$ \left(V (t_{1}-t_{0}) -l_{1}\right)^{2} + \cdots + \left(V (t_{n}-t_{0}) -l_{n}\right)^{2}. $$
(11)
We then determine the homogenized acoustic velocity in the concrete. For given V and v, x and the length L of the segment QP in Fig. 8 are calculated as
$$ x= \frac {vh} {\sqrt{V^{2} -v^{2}}}, L= \frac {Vh} {\sqrt{V^{2} -v^{2}}}. $$
(12)
We first let v0=3500m/s then the ultrasonic wave projected from the point \(O_{i} (0, h_{i}), \bar h_{i} < h \) linearly propagates in the concrete to the observation point \(R_{j}(r_{j}, 0), r_{j} < \frac {vh} {\sqrt {V^{2} -v_{0}^{2}}}\). Take as many pairs of source and observation points {Oi,Rj} which gives the length Lij of the segment where the ultrasonic wave propagates, and the travel time tij. Therefore we obtain the first step value v1 of the homogenized acoustic velocity in the concrete by
$$ v_{1} = \frac { \sum t_{ij} L_{ij}} { \sum t_{ij}^{2}}. $$
(13)

Replacing v0 by v1 and repeating the same procedure, we obtain the second step values \(v_{2}=\bar v\), which we determine as the homogenized acoustic velocity in the concrete. If necessary, we make the sequence {vk} until it approximately converges, for example, we stop the procedure when vk+1vk<0.01(m/s).

By the knowledge of the acoustic velocities, V in the steel and \(\bar v\) in the concrete, and the route where the ultrasonic wave propagates, we can propose a non-destructive inspection technique for concrete cover by application of Conclusion 3.1.

In Fig. 8, when we observe the travel time the primary ultrasonic wave between the points O and P, the calculated travel time is
$$ \frac {l-\frac {\bar vh} {\sqrt{V^{2} -{\bar v}^{2}}} }{V} + \frac {Vh} {\bar v\sqrt{V^{2} -{\bar v}^{2}}} $$
(14)
and the one in the segment QP is
$$ \tilde t = \frac {Vh} {\bar v\sqrt{V^{2} -{\bar v}^{2}}}. $$
(15)
If the velocity \(\tilde v\) in the segment QP is much smaller than the homogenized velocity \(\bar v\), for example, \( \bar v -\tilde v > 200 m/s\), then one or more of the following could happen.
  • There is a cavity in the segment QP.

  • There is a water route around the steel.

  • Some part of the steel may get corroded.

In any case, we have to shave the concrete cover and have to repair the defect. Shaved concrete cover can be easily re-fixed by filling the cavity by shaving with better concrete. Therefore, what is important is to establish how to find where to shave in a non-destructive way, an answer of which is given as the above way.

Conclusion

In this section, we summarize our conclusions in the present paper.

Conclusion 6.1.

(Conclusion of this paper)
  • For development of the ultrasonic CT, we studied how the primary ultrasonic wave propagates in the cement paste and the mortar (Conclusion 3.1).

  • Applying the property of the primary ultrasonic wave, we have posed a problem for the development of the ultrasonic CT (Problem 4.1).

  • Our ultrasonic CT for concrete structures is safe, cheaply-running and concrete non-destructive inspection method for concrete structures, which enables us to reconstruct the interior of the concrete structures concretely (Claim 4.1).

  • The problems posed in this paper are also interesting and important in view of the study of mathematics (Remarks 4.1 and 4.2).

  • As an application of our ultrasonic CT, we developed a non-destructive inspection method for concrete cover in RC structures (Section 5), where homogenization of acoustic velocity in the concrete by the idea of the least square solutions played an important role.

Theoretical approach, as well as computational one, to Problem 4.1 is under investigation. As an approach to Problem 4.1, the main problem in this paper, we are trying a similar method that G. N. Hounsfield applied for practicalization of the computerized tomography. Confer [11] for the idea by G. N. Hounsfield to practicalize CT.

For the verification of our non-destructive inspection testing technique introduced in the fifth section, we shall make another test pieces of reinforced concrete with some pieces of styrofoam in its interior and perform experiments to detect them by our technique, we shall also apply our technique to the real expressways which shall be introduced in our forthcoming paper.

It is also required, in view of practical application, to generalize our non-destructive inspection techniques for concrete cover, in more complicated RC structures, which in under investigation with real expressways by the authors and West Nippon Expressway Shikoku Company Limited.

Abbreviations

CT:

computerized tomography

RC:

reinforced concrete

Declarations

Acknowledgments

The basic idea of this research was presented in the conferences Collaboration between theory and practice in inverse problems held at IMI, Kyushu University, Japan, from Dec. 16th to Dec. 19th, 2014 and Development of ultrasonic tomography for concrete structures held at IMI, Kyushu University, Japan, from Nov. 10th to Nov. 13th, 2015 where lively discussions were had on this problem by engineers, in both industry and academia, and mathematicians. The authors claim that the present paper is a typical fruit by interdisciplinary and industry-academia collaboration among engineers, mathematicians and companies.

Funding

The second author was supported in part by Japan Society for the Promotion of Science (JSPS) Grant-in-Aid for Scientific Research (C) 26400184.

Authors’ contributions

This work is a collaboration and finished by discussion by the both authors. They contributed to all context. Both authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Faculty of Human Resources Development, Polytechnic University of Japan, 2-32-1, OgawaNishimachi, Kodaira, Tokyo 187-0035, Japan
(2)
Department of Mathematics, National Defense Academy of Japan, 1-10-20, Hashirimizu, Yokosuka, Kanagawa 239-8686, Japan

References

  1. Arakawa, M., Kanai, H., Ishikawa, K., Nagaoka, R., Kobayashi, K., Saijo, Y.: A method for the design of ultrasonic devices for scanning acoustic microscopy using impulsive signals. Ultrasonics. 84, 172–179 (2018).View ArticleGoogle Scholar
  2. Dunham, C. W.: The theory and practice of reinforced concrete (third edition). McGrow-Hill, New York (1953).Google Scholar
  3. Gorzelańczyk, T., Hola, J., Sadowski, L., Schabowicz, K.: Methodology of nondestructive identification of defective concrete zones in unilaterally accessible massive members. J. Civ. Eng. Manag. 19, 775–786 (2013).View ArticleGoogle Scholar
  4. Greenleaf, J. F., Johnson, A. A., Lee, S. L., Herman, G. T., Wood, E. H.: Algebraic reconstruction of spatial distribution of acoustic absorption within tissue from their two-dimensional acoustic projections. Acoust. Hologr.5, 591–603 (1974).View ArticleGoogle Scholar
  5. Hobbs, B.: Ultrasonic NDE for assessing the quality of structural brickwork. J. Nondestruct. Test. Eval. 12, 75–85 (1995).View ArticleGoogle Scholar
  6. Jones, R., Facaoaru, I.: Materials and Structures. Res. Test.2, 275 (1969).Google Scholar
  7. Li, Z.: Advanced Concrete Technology. Wiley, Hoboken (2011).View ArticleGoogle Scholar
  8. Motooka, S., Okujima, M.: Study on Detection of Buried Steel Bar in Concrete with Electromagnetic Impact Driving Method. Proc. 2nd Symp. Ultrason. Electron., 144–146 (1981).Google Scholar
  9. Neville, A. M.: Properties of concrete (fifth edition). Pearson Education Limited, Edinburgh (2011).Google Scholar
  10. Schabowicz, K.: Ultrasonic tomography – The latest nondestructive technique for testing concrete members – Description, test methodology, application example. Arch. Civ. Mech. Eng. 14, 295–303 (2014).View ArticleGoogle Scholar
  11. Takiguchi, T.: How the computerized tomography was practicalized. Bull. JSSAC. 21, 50–57 (2015).Google Scholar
  12. Yamamoto, H., Saito, H., Tabei, M., Ueda, M.: Calculation of projection data for the ray ultrasonic computed tomography by the ray tracing method. J. Acoust. Soc. Jpn. (E). 12, 157–167 (1991).View ArticleGoogle Scholar

Copyright

© The Author(s) 2018

Advertisement
